Light & Display Measurement

VCSEL Video

View an educational video on VCSEL Measurement titled "Spectrally Corrected Display and VCSEL Measurement". Instrument Systems GmbH, a division of Konica Minolta Sensing since 2012, provides their German engineering expertise to leading automotive companies and their suppliers worldwide by providing measurement solutions for: characterizing displays, dashboards, testing of light guides, control elements and automotive and traffic lighting.

IES Conference 2022

Visit Konica Minolta Sensing at the Illuminating Engineering Society (IES) Conference on Friday, August 19th at 6:30pm during the tabletop reception and discuss current developments within the lighting industry with our technical staff and see how we can assist you in your lighting needs.

Konica Minolta Sensing will be offering a 5% discount on our CL-200A Chroma Meter show promotion celebrating the return of the (IES) Conference.

The CL-200A is a 5 in 1 illuminance meter that measures color temperature, illuminance, chromaticity, excitation purity, and dominant wavelength of various light sources.

VTC 4000
Near-Field Camera
Analysis of VCSEL Arrays

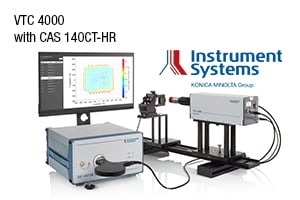

Konica Minolta Sensing along with Instrument Systems introduces its near-field VTC 4000 camera with microscope optics provides one-shot single emitter and array analysis with traceable radiometric calibration.

The VTC 4000 is capable of simultaneously determining position, radiant power and polarization of single emitters on a VCSEL array in a single-shot camera measurement. This allows quick and easy detection of defect emitters on the array. The integrated polarization analysis ensures an unprecedented radiant power measurement accuracy with minimal error budget.

CAS 140CT-HR
High Resolution Array Spectroradiometer

The high-resolution CAS 140CT-HR product line is particularly designed for the measurement of narrow band emitters, ideal for laser diodes and VCSEL measurements. Combining the demands of high spectral resolution and short testing times for sophisticated measurement tasks in production and laboratory environments. Spectral resolution down to 0.2 nm FWHM (0.08 nm data point interval). Typical measuring ranges of 80, 120 and 160 nm customized within the spectral range from 800 to 1000 nm (further spectral ranges available on request). Like all CAS models from Instrument Systems, the CAS 140CT-HR also has a PTB traceable calibration.

June Newsletter- Lighting

Summer solstice is recognized and celebrated worldwide by many cultures. This year summer solstice will occur on June 21st 2022. This is when earth's rotation has the North Pole at its maximum tilt toward the sun, making it the longest day of the year, and allowing us to enjoy the sunlit day a little longer. But did you know that on the opposite side of the world, the southern hemisphere recognizes the June solstice as indicating the start of winter? There the sun is at the lowest point in the sky and is considered the shortest day of the year. Some companies are recreating 'windows' that duplicate the daylight sky through the use of lighting so that no matter where your location or your climate is you will be able to tune into a sunlit drenched day using an 'indoor window'. To read more about this read our blog "Here Comes the Sun!" and see how Instrument System's CAS-120 Array Spectroradiometer instrument along with EOP-120 Optical Probe is used in measuring these LED systems.

CL-500A

lluminance Spectrophotometer

The CL500a is the first handheld illuminance spectrophotometer that conforms to both DIN and JIS standards, and, is traceable to NIST. With the accuracy of a spectrometer, this portable light meter ensures the highest precision and repeatability in the market when measuring the illuminance and chromaticity of light. RGB and XY values are unmatched when compared to competing light meters. Accurately measuring today’s emitters such as LED, OLED, and gas-discharge light sources is a challenge for typical light meters. The CL500a precisely measures the narrow band spectral distribution of today’s LED products.

CL-70F

 CRI Illuminance
Meter

Customization at your fingertips does not get any easier with the CL-70F’s large color touch screen display. Quick and easy navigation without compromising accuracy. A cost-effective option for your illuminance measurement needs. The CL-70F CRI Illuminance Meter is an entry-level solution for the measurement and evaluation of the illuminance, color temperature, and color rendering index (CRI) of various illumination sources such as LEDs and fluorescent lamps.

CL-200A

Chroma
Meter

The CL-200A chromaticity meter is ideal for measuring color temperature and allows measuring the illumination, chromaticity, dominant wavelength and excitation purity of various lighting sources, such as LED, OLED and other forms of organic electroluminescence (EL). The CL-200A is ideal for the development and adjustment of projector lighting, development and maintenance of panels, and LEDs.

May Newsletter

Spring is in the air and with the warmer weather brings the desire to travel to more in-person events and shows blossom. Konica Minolta Sensing was pleased to have the opportunity to travel and attend SID Display Week May 8th-13th (Expo Hall open May 10th-12th) in San Jose, California.

At SID 2022 we displayed our two latest Advanced High-Sensitivity Probes: CA-VP427A and CA-VP410A; both advanced in their support.

Our sister company, Instrument Systems GmbH, located in the German pavilion  showcased their complete LumiTop family of spectrally enhanced imaging colorimeters, including their portfolio for AR/VR, AFS headlights and automotive displays.

If you were unable to attend SID Display Week this year you can still receive a complimentary pass and visit our booth and exhibitor forums virtually! Learn more.  As always, we look forward to sharing our recent technological developments and how they can better assist you in your daily research and operations.

CA-VP427A /
CA-VP410A

Advanced High-Sensitivity Probes

Konica Minolta Sensing displayed its latest Advanced High-Sensitivity Probes: CA-VP427A and CA-VP410A both advanced in their support. CA-VP427A offering accuracy guaranteed range for Lv  .0003-5000 nits and CA-VP410A with .0001-3000 nits. The new algorithm is optimized for more accurate and stable measurements for lower luminance. Learn more about our CA-410 and download CA-410 probe specification data sheet.

LumiTop 4000

 μLED array Measurements

Instrument Systems highlighted the 2D measurement of μLED arrays for Adaptive Forward Lighting System (AFS). The LumiTop 4000 with 12-megapixel camera and a 100mm lens coupled with the CAS140D spectrometer provides high accuracy at a high measurement speed. This combo solves common heating challenges by measuring all color channels in a single shot. Ideal for measurement in the lab or production in-line testing.

Under-Screen Camera Fixture

Under-Screen Camera Measurements

The challenges of measuring under-screen camera (USC) applications are addressed with our specialized under-screen camera fixture coupled with our CA-VP402 Small Spot Probes. This fixture simultaneously measures both USC area and the general area side by side within a 10mm distance. Learn more about these challenges.

VCSEL Portfolio

Experience Instrument Systems' interactive VCSEL portfolio video! 3D sensor technology has developed into a ‘game-changer’ for smart products using vertical-cavity surface-emitting lasers (VCSELs) as efficient light sources. VCSEL-based sensor technology supports applications such as AI, internet-of-things (IoT) and AR/VR technologies; it also simplifies the integration of smart systems into our everyday chores. However, because VCSELs have special properties, their characterization is more complex than that of other typical laser sources. Watch an interactive VCSEL video highlighting Instrument Systems GmbH's portfolio of VCSEL instruments.

SID Display Week 2022

Recognizing the advancements within the display industry, Konica Minolta Sensing’s CA-410 Display Color Analyzer with ø4mm and ø2.1mm Small Spot Probes address the importance of accuracy and usability in the evaluation of micro and small displays. Join us at the SID Display Week, May 10th-12th in San Jose, California to discuss with our in-person booth staff on instrument developments in measuring AR/VR and the recent interest with under-screen camera applications for measuring fast gamma, VESA/JEITA flicker, and display waveform. Complementing our display measurement solutions, will include our Spectroradiometer CS-2000 series and its use with pupil-size spot measurements for AR/VR Applications. Visit Konica Minolta Sensing at Booth #1319 and our sister company Instrument Systems GmbH at Booth #1127.

Advanced Calibration
from UVC to IR

Using LED calibration standards, the ACS-570 series are available in several models from UV-C to IR and are calibrated to luminous flux and luminous intensity or averaged LED intensity.
An all-in-one system for determining the radiant flux of UV-LEDs in the lab comprises a combination of the well-proven Instrument Systems spectroradiometers, such as the CAS series, with integrating spheres made from PTFE facilitate high sensitivity measurements of UV radiant flux. All Instrument Systems UV measurement solutions with PTFE integrating spheres are delivered with a PTB traceable calibration.

ACS & ACU Series
Brochure

Review our ACS & ACU series brochure by Instrument Systems.  See how
advanced technology helps meet ever-advancing calibration standards. One of the many topics covered includes a review of the advanced calibration standards on LED basis are available in white, RGB, UV and IR. Also discussed is a focus on reference values for radiant or luminous flux, averaged LED intensity and luminance traceable to PTB standards. See how our ACS 570 model with its array of adapters make it easy to use for a variety of spheres to monitor a number of systems; including those in need of luminous flux measurements.

Light Meter Brochure

Light is essential for the perception of color, vital to visual information. Accurate measurement or specification of lighting is crucial in many industries: ensuring heritage isn't damaged by excess light, providing enough light for safe driving or for performing complex or detailed work. Being able to accurately measure light is necessary for producing reliable data. Browse our light meter brochure to find out more about our instruments and the technology behind them.

LEDucation 2022

We are very excited to have you join us at the live event at LEDucation 2022 this March 15th-16th. Sales and application engineers will be onsite to discuss high-performance spectroradiometers for testing LEDs, displays, and any application questions you may have. We hope to see you there! Stop by our table and say hello.If you would like to attend LEDucation you may register now. Can't attend? A virtual day will also be offered on March 14th for those interested in attending any of the lectures or talks.

CL-500A
Spectrophotometer

The CL500a is the first illuminance spectrophotometer that conforms to both DIN and JIS standards, and, is traceable to NIST. With the accuracy of a spectrometer, this portable light meter ensures the highest precision and repeatability in the market when measuring the illuminance and chromaticity of light. RGB and XY values are unmatched when compared to competing light meters. Accurately measuring today’s emitters such as LED, OLED, and gas-discharge light sources is a challenge for typical light meters. The CL500a precisely measures the narrow band spectral distribution of today’s LED products.

T-10A Iluminance Meter & T-S10w Software

This video highlights features of the T-S10w software. Konica Minolta Sensing, the standard for measuring color and light, offers optional Data Management Software T-S10w with the T10A and T-10MA illuminance Meters. T-10 series instruments measure the amount of light that falls on a surface and you can configure them in many ways. Konica Minolta Sensing’s TS-10w software allows you to connect the T10A and T-10MA to your computer and perform illuminance measurements. Review the video highlighting features of the T-S10w software.

VCSEL Presentation

Visit our sister company, Instrument Systems GmbH, at Photonics West at Booth #4013-02, as they present their paper "Spatially-Resolved Polarization Characterization of VCSEL Arrays" on January 27th at 11:30am-11:50am PST in Room 153 located in the Upper Mezzanine South corridor. Discussion will highlight VCSEL and IR applications using a combination of polarization filtered microscope optics and a CMOS camera.

Photonics West 2022

We are very excited to be back in-person at Photonics West this January and seeing all our customers face to face again. This year, we will be highlighting measurement instrumentation for luminance, color, and flicker measurement. Applications covered include AR/VR, display, and lighting. Specifically our CA-410 display color analyzer, our CS-2000A spectroradiometer and our hyperspectral camera the Specim IQ. Stop by our booth #3287 and register now!

CS-2000A
Spectroradiometer
w/Special Attachment

Measuring CS-2000A Spectroradiometer with specialized attachment measures virtual images corresponding to pupil size and evaluates the levels of luminance, chromaticity and visible spectrum of virtual images of AR/VR applications. This specialized accessory is ideal for  measurement on head-mounted displays (HMD). The special attachment consists of 3 major parts: attachment body, aperture holder, and pupil-size aperture with 8 different measurements of spot sizes ranging from 1mm to 8mm in diameter.

CA-S40 Software
for CA-410 Series

Progressive Display Color Analyzer CA-410 Probe Series small spot probes (ø4mm and ø2mm), ideal in the evaluation of micro and small displays, and long-working distance probe (ø10mm) with viewing angle measurement capabilities. To also meet your needs of evaluating flicker is available our CA-410 Display Analyzer’s latest PC software, the CA-S40 provides intuitive waveform measurement quickly and accurately. Discover more today and register to watch a video on this latest software.

Aerospace Webinar

Advances in display technology within the aerospace industry requires the ability to evaluate the quality and performance of displays so that it can easily and clearly be understood and deciphered by pilots in making accurate and timely decisions. Our aerospace webinars review and discuss instruments that can measure display systems in the flight deck of an aircraft: including Night Vision Imaging Systems (NVIS) compatibility, 2D imaging camera systems, spot meters, and AR/VR applications. Did you miss our Aerospace Measurement webinar? Good news.. you can watch the on-demand webinar at your leisure.

Photonics West 2022

We are very excited to be back in-person at Photonics West this January and seeing all our customers face to face again. This year, we will be highlighting measurement instrumentation for luminance, color, and flicker measurement. Applications covered include AR/VR, display, and lighting. Specifically our CA-410 display color analyzer, our CS-2000A spectroradiometer and our hyperspectral camera the Specim IQ. Stop by our booth #3287 and register now!

CS-2000A
Spectroradiometer
w/Special Attachment

Measuring CS-2000A Spectroradiometer with specialized attachment measures virtual images corresponding to pupil size and evaluates the levels of luminance, chromaticity and visible spectrum of virtual images of AR/VR applications. This specialized accessory is ideal for  measurement on head-mounted displays (HMD). The special attachment consists of 3 major parts: attachment body, aperture holder, and pupil-size aperture with 8 different measurements of spot sizes ranging from 1mm to 8mm in diameter.

CS-150
Luminance & Color Meter

The most affordable high-accuracy instrument in its class, the handheld CS-150 luminance and color meter was designed for measuring the unique colors and brightness of modern displays. Precise targeting is very easy for the user to obtain exact areas to measure with the single lens reflex. The CS-150 features a 1° degree measurement angle and a luminance measurement range of 0.01 to 999,900 cd/m². Discover more today.

UV Measurement

Enjoy the brochure by Instrument Systems entitled "ISP PTFE- Integrating Spheres for UV Measurement". This brochure focuses on UV measurement used for laboratory and production environments. Learn more abut the PTFE integrating spheres new generation models and their high sensitivity for UV and its flexible optical ports and equipment design features and its PTB and NIST traceable calibration.

Advanced Calibration

Review the brochure "ACS & ACU Series" and read how Instrument Systems addresses advanced calibration standards from UVC to IR with its ACS and ACU series. Learn how ACS calibration standards provide reference values for radiant or luminous flux, averaged LED intensity and luminance.

Measurement System
for UV Radiation

Listen to the presentation "Measurement Systems in the UV A/B/C Range" by Denan Konjhodzic, Application Engineer from Instrument Systems GmbH. Discussion will review ho many companies and research institutions today have adopted UV radiation as a tool for their projects and research. With this adoption brings the need for instruments providing reliable measurement of these UV ranges from experts within the field.  Today there exists no reference standard for the total radiant flux in the UVB and UVC spectral region. Instrument Systems addresses this by offering traceable UV LED calibration standards.

Measuring Blue Light Hazard

The blue light hazard (BLH) measuring station from Instrument Systems evaluates and classifies LED lamps and luminaires according to blue light hazard as described in Standards IEC 62471 and IEC/TR 62778.

These individual system components in its high-end portfolio are consistently ongoing technological upgrades to ensure that they satisfy current requirements. Precise BLH measurements on the basis of the established CAS 140D spectroradiometer guarantee the greatest possible safety in the classification of tested lamps and luminaires in die BLH risk classes.

Case Study
Effects of LED Street Lighting on Sleep Patterns

Can the color of street lights affect your sleep? This question required research by highly trained electrical engineers. CR Engineers of Fountain Hills, Arizona, set out to measure lighting color levels emitted by LED street lights in the City of Phoenix; in particular, the level of blue energy. CR Engineers is a consulting electrical engineering firm employing highly skilled individuals with hands-on technical backgrounds in various areas of electrical expertise. Their experience exceeds 1,000 projects ranging from low cost residential designs for local architects to large projects with construction costs over $25 million. Read this case study to see the interesting findings.
