MM-4e Controlled Lighting

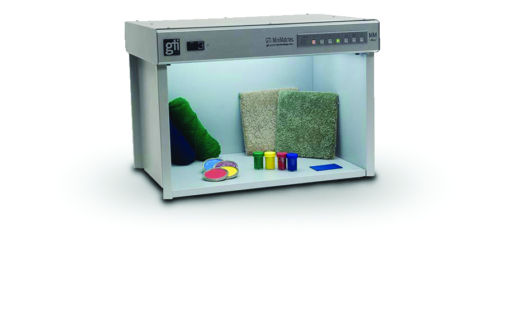

The MM-4e light booth provides five spectrally different sources of illumination for precise color comparison and visual color assessment, easy detection of metamerism, and environment lighting duplication. Included with the MM-4e is a new digital control that confirms which source you have selected with an illuminated push button. This also provides easy one touch automatic light source sequencing.

Existing Customer?

If you're looking for service support or help with calibration then complete a service request form and we'll get right back to you

Features

  • Store Light (CWF or TL84)
  • Artificial Daylight (D65 or D50)
  • Your Choice (TL84, TL83, D50, 30U)Ultraviolet (BLB UVA )
  • Home Light (Horizon or Incandescent A)
  • Additional built-in Daylight lamp timer

Specifications

MM-4e Light Booth: Viewing Area 14.25″ x 24″ x 16″ (36 cm x 61 cm x 41 cm) Munsell N7/ neutral gray surround
Standard Light Sources 120 Volt Models 230 Volt Models
Daylight*: Artificial Daylight (D65) Artificial Daylight (D65)
Store Light: Cool White Fluorescent TL84 Fluorescent
Home Light: Incandescent (Illuminant A) Incandescent (Illuminant A)
Optional*: TL83 3000K standard TL83 3000K standard
Ultraviolet: UVA (BLB) UVA (BLB)
*Other fluorescent viewing sources can be substituted upon request.
