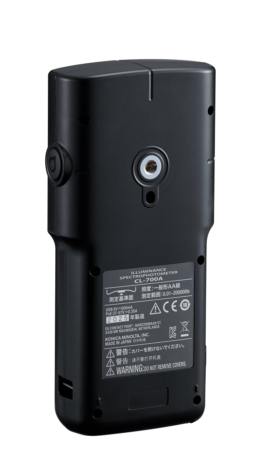

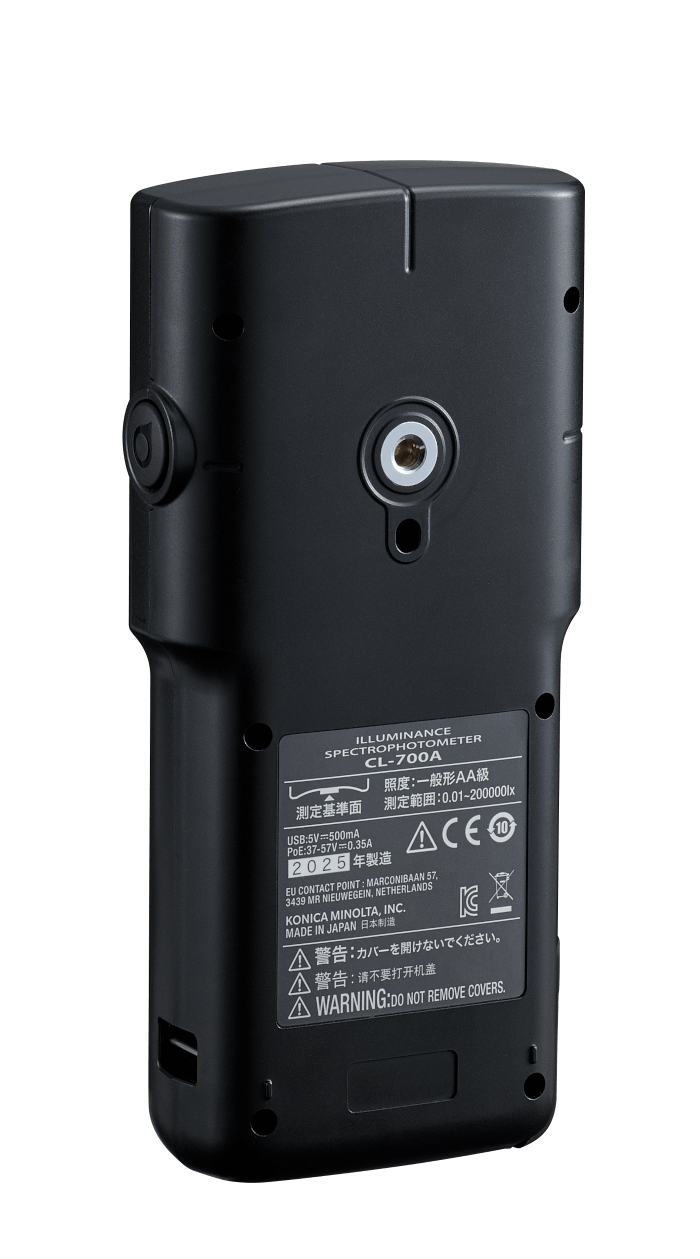

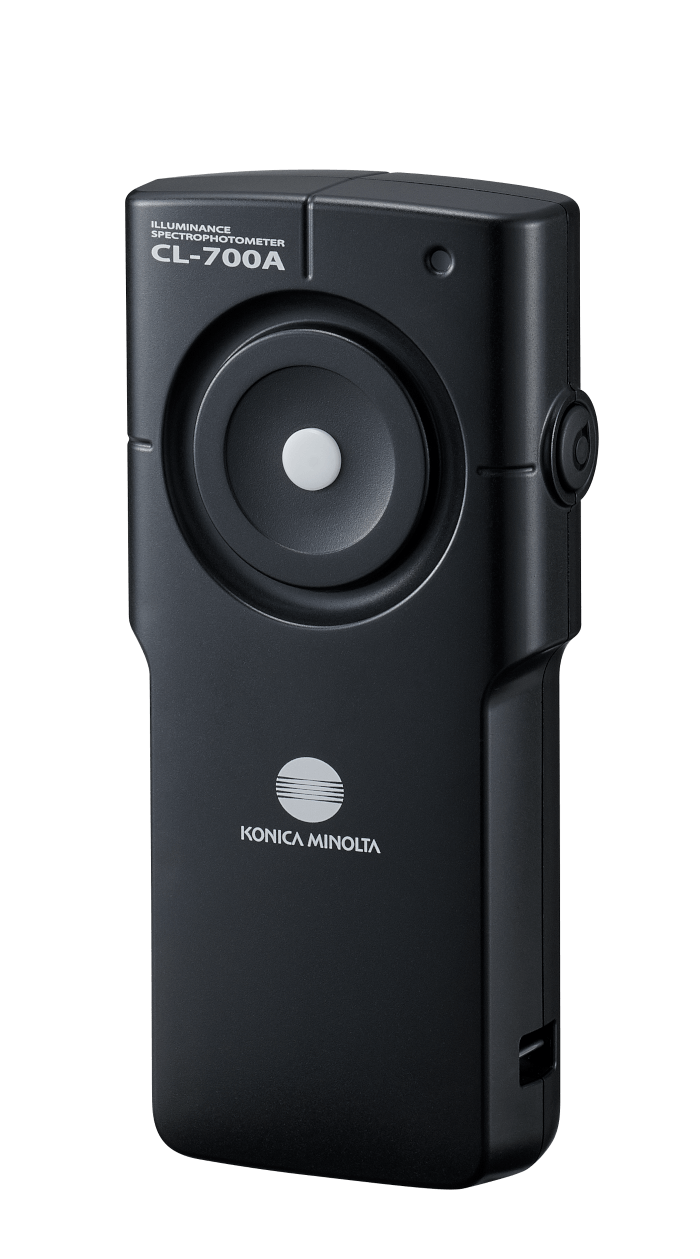

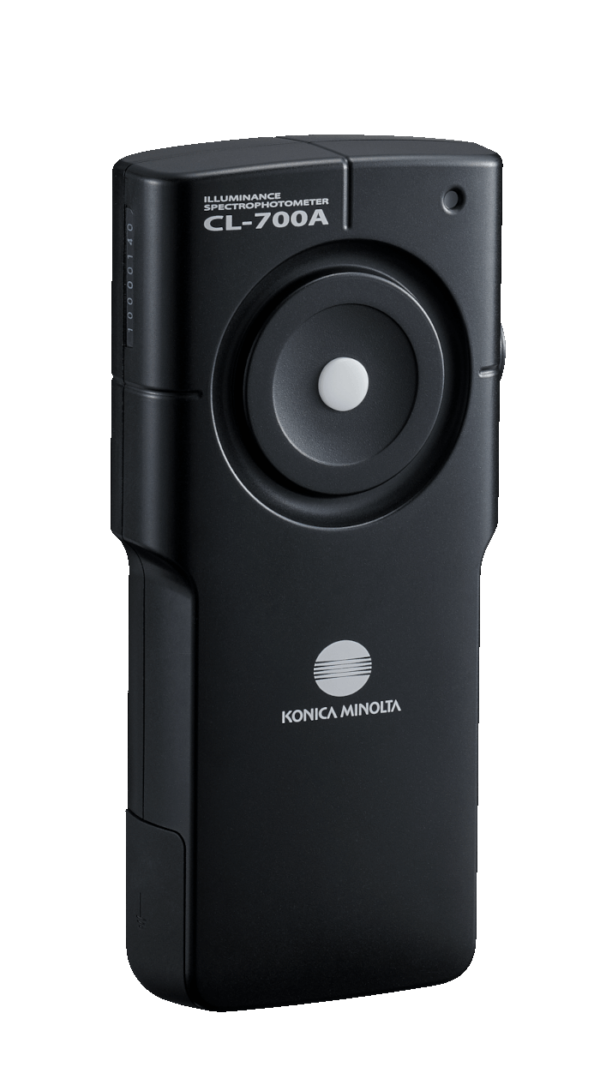

CL-700A Illuminance Spectrophotometer
Click to Enlarge Thumbnails
At Konica Minolta, we understand that industries at the forefront of technology, whether designing advanced lighting systems, developing next-generation aircraft, or engineering immersive AR/VR experiences, require tools that deliver accurate, reliable, and scalable light measurement. We built the CL-700A Illuminance Spectrophotometer to meet those demands.
With a broad spectral range from 360 to 1000 nm, the CL-700A captures both visible and near-infrared light, enabling precise evaluation of a wide variety of light sources, including LEDs, OLEDs, and NIR emitters. Its wide illuminance range, from 0.01 to 200,000 lux, supports measurements in both ultra-low-light and high-intensity environments, making it suitable for everything from cockpit lighting validation to AR/VR sensor calibration.
The CL-700A also supports multi-point measurement with up to 15 synchronized units, allowing users to assess spatial uniformity and color consistency across complex lighting arrays or large-scale installations. Multi-point measurement is particularly valuable in aerospace cabin lighting systems, immersive AR/VR display environments, and architectural lighting designs where uniformity and precision are critical.

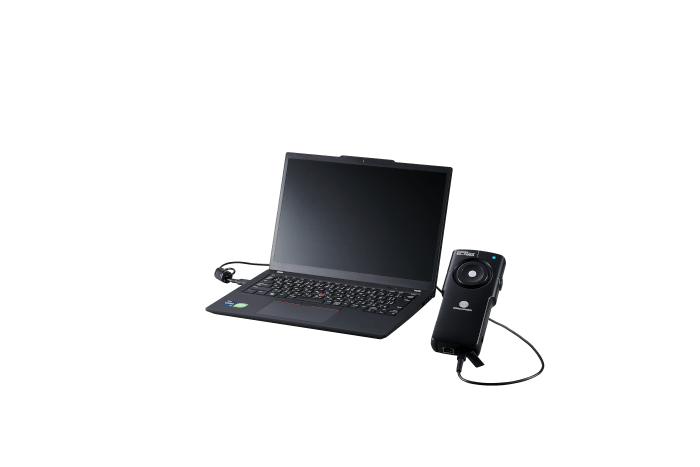

Designed for flexibility, the CL-700A features a compact, lightweight form factor that integrates easily into handheld workflows or automated test systems. With USB and Ethernet connectivity, it supports real-time data acquisition and remote operation. The included CL-S30 software provides intuitive control, spectral visualization, chromaticity analysis, and streamlined data management.
Applications Across Key Industries
- Lighting Evaluate LED performance, color rendering, and illuminance uniformity in commercial, industrial, and architectural lighting systems. The CL-700A supports compliance with industry standards and helps optimize lighting quality for energy efficiency and visual comfort.
- Aerospace Ensure cockpit and cabin lighting systems meet stringent aviation standards. The CL-700A enables precise spectral and illuminance measurements under varying conditions, supporting both R&D and production-level quality assurance.
- AR/VR Calibrate image sensors and displays using both visible and NIR light. The CL-700A supports low-light testing, multi-point display uniformity analysis, and spectral evaluation of optical components—critical for delivering immersive, high-fidelity user experiences.
The CL-700A is more than a light meter, it is a versatile measurement solution designed to support innovation in industries when lighting performance matters most. Whether you are optimizing a lighting system, validating aerospace components, or fine-tuning AR/VR technology, the CL-700A delivers the data you need to move forward with confidence.
Click here for the CL-700A Brochure.
Existing Customer?
If you're looking for service support or help with calibration then complete a service request form and we'll get right back to you
Features
- Eligible for ISO 17025 Certification
- Wide Spectral Range (360–1000 nm)
- Broad Illuminance Range (0.01 to 200,000 lux)
- Multi-Point Measurement Capability up to 15 synchronized units
- Compact and Lightweight Design
- CL-S30 Software Included for streamlined data management
- Fast Measurement Speeds Offers Super-FAST mode (within 0.3 seconds) and NORMAL mode (up to 5 seconds)
- High Accuracy and Repeatability 0.0005 xy (≥50 lx), supporting compliance with industry standards.
- USB and Ethernet Connectivity enabling flexible integration
- Automatic Zero Calibration and Wavelength Correction
Specifications
| Model | Illuminance Spectrophotometer CL-700A |
|
Illuminance meter class |
Complies with JIS C 1609-1:2006 Special type illuminance measuring instruments *1
Complies with DIN 5032-7:1985 classB *2 |
| Wavelength range | 360 to 1000 nm |
| Output wavelength pitch | 1 nm |
| Spectral bandwidth | Approx. 10 nm (half bandwidth) |
| Wavelength precision *3 | ±0.3 nm (Centroid wavelengths of 435.8 nm, 546.1 nm, 696.5 nm, and 912.3 nm as specified in JIS Z 8724:2015) |
| Measuring range | 0.01 to 200,000 lx (chromaticity accuracy guaranteed range is 0.5lx
or more) |
|
Accuracy *4 (Standard Illuminant A) |
Ev (Illuminance) : ±2%±1 digit of displayed value
xy: ±0.0015 (5 to 200,000 lx) xy: ±0.002 (0.5 to 5 lx) |
|
Repeatability (2σ) *4 (Standard Illuminant A) |
xy: 0.0005 (50 to 200,000 lx)
xy: 0.001 (10 to 50 lx) xy: 0.002 (5 to 10 lx) xy: 0.004 (0.5 to 5 lx) |
| V(λ) mismatch (f1‘) | Within 1.5% of spectral luminous efficiency V (λ) |
| Directional response (f2) | Ev: Within 3% |
| Temperature dependence (fT) | Ev: ±3%
xy: ±0.003 |
| Humidity resistance (fH) | Ev: ±3%
xy: ±0.003 |
|
Measurement time *5 |
Super FAST mode: Within 0.3 seconds FAST mode: Within 0.5 seconds
NORMAL mode: Approximately 0.5 to 5 seconds |
|
Measurement function |
X,Y,Z
Ev,x,y u’,v’ Tcp (Correlated color temperature), duv λd (Dominant wavelength), Pe (Excitation purity) Ra (General color-rendering index) Ri (i=1~15) (Special color-rendering indexes) TM-30-20 (when using CL-S30) TLCI (when using CL-S30) SDCM (when using CL-S30) Ev’,S/P EML(Equivalent Melanopic Lux) PPFD Ee(Irradiance) (when using CL-S30) Ee(λ) (Spectral irradiance) Spectral graph, Peak wavelength (when using CL-S30) |
|
Other functions |
Automatic zero calibration/wavelength correction
User calibration data input/output (when using CL-S30) Averaged measurement Continuous measurement (when using CL-S30) Multi-point measurement (up to 15 units) (when using CL-S30) Color matching functions: CIE 1931(2° Standard Observer), CIE1964(10° Standard Observer), CIE170-2(2°), CIE170-2(10°) |
| Display languages | English, Japanese, Simplified Chinese (when using CL-S30) |
| Interface | USB 2.0, Ethernet |
| Power | USB bus power (when using USB), PoE (when using Ethernet, compliant with IEEE 802.3af) |
| Operation temperature / humidity range | 0 to 40°C, relative humidity of 85% or less (at 35°C) with no
condensation |
| Storage temperature / humidity range | -10 to 45°C, relative humidity of 85% or less (at 35°C) with no
condensation |
| Size (W × H × D) | 80 × 170.5 × 35 mm |
| Weight | Approx.214 g |
*1 It does not comply with the following requirements for JIS C1609-1:2006 General type AA class illuminance meters:
•When Speed Mode is set to NORMAL mode, Range 7-10 do not comply with “5.5 Display
characteristics (response time)”
•Temperatures below 0°C are outside the Operation temperature range, non-compliant with “5.7
Temperature characteristics”
• No display, non-compliant with “6.3 Display” All other requirements are compliant.
*2 Within an illuminance range of 1 lx or higher
*3 Under our test conditions (temperature change ≤2°C after zero calibration).
*4 NORMAL mode (at 23°C ±2°C, relative humidity ≤75%).
*5 The measurement time is the value under the following conditions:
•Time from measurement request from the operating terminal to completion of result reception from the measuring instrument
•When connected via USB
•Super FAST mode when Manual range setting is active
•When Buzzer Drive Mode is OFF
•Note: When 15 points are connected (via Ethernet), the measurement time is within measurement
time shown + 1 second
